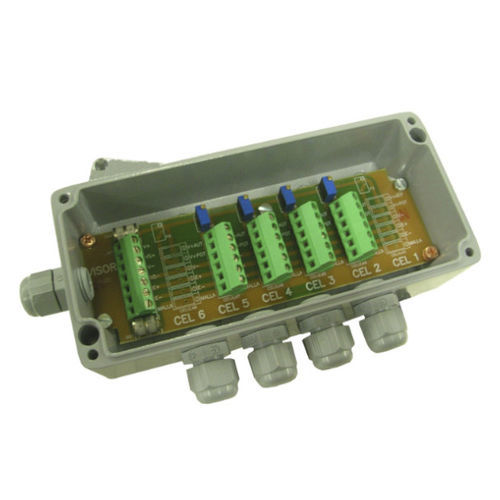

Load cell junction box CAJA/-RA series
surface mountedaluminiumwith cable gland

Load cell junction box - CAJA/-RA series - SENSOCAR - surface mounted / aluminium / with cable gland
Load cell junction box - CAJA/-RA series - SENSOCAR - surface mounted / aluminium / with cable gland
Load cell junction box - CAJA/-RA series - SENSOCAR - surface mounted / aluminium / with cable gland - image - 2
Load cell junction box - CAJA/-RA series - SENSOCAR - surface mounted / aluminium / with cable gland - image - 3
Load cell junction box - CAJA/-RA series - SENSOCAR - surface mounted / aluminium / with cable gland - image - 4
Load cell junction box - CAJA/-RA series - SENSOCAR - surface mounted / aluminium / with cable gland - image - 5
Load cell junction box - CAJA/-RA series - SENSOCAR - surface mounted / aluminium / with cable gland - image - 6
Add to favorites
Compare this product

Go to the SENSOCAR website for more information

Characteristics

Mounting
surface mounted
Material
aluminium
Applications
for load cells
Other characteristics
with cable gland
Length / diameter

175 mm
(6.9 in)

Width

80 mm
(3.15 in)

Depth

60 mm
(2.36 in)

Description

Aluminium junction box for 4 up to 16 analogue load cells: CAJA/4-RA (4 load cells) CAJA/6-RA (6 load cells) CAJA/8-RA (8 load cells) CAJA/10-RA (10 load cells) CAJA/16-RA (16 load cells) With gas dischargers to protect against atmospheric discharges External ground power outlet Possibility of direct connection without potentiometer (Autocalibration)
