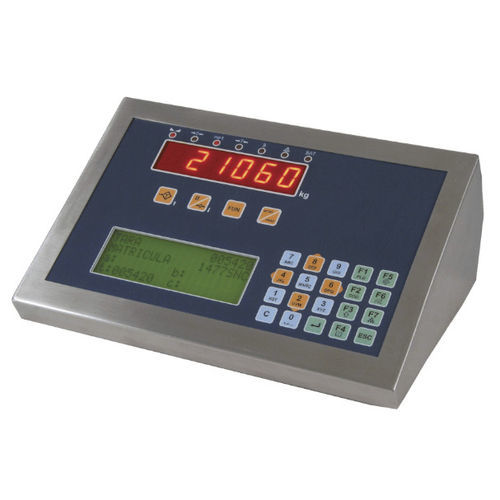

LED display weight indicator SC2 seriespanel-mountwaterproofRS-232
Add to favorites
Compare this product
Characteristics
- Display
- LED display
- Mounting
- panel-mount
- Protection level
- waterproof
- Output
- RS-232
- Other characteristics
- stainless steel, with built-in printer
- Applications
- for truck scale, for parts counting
Description
Alphanumeric truck weighing indicator.
Up to 1000 weighing registers memory.
Listing and tickets from memory.
Double RS232 output: connection to PC and printer
Keyboard
Alphanumerical keyboard
Material
Stainless steel
Homologation
OIML R76//EN 4550 10.000e Clase III
Temperature range
-10 to 40℃
A/D Converter
24 bits (1.000.000 div)
Min. input voltage per verification scale interval
1μV
Voltage of the measuring range
8 - 24mV
Minimum load cell impedance
40Ω
Max. signal voltage for dead load
16mV
Electromagnetic susceptibility
10V/m
Power supply
220V AC // 12V DCVAC
Alibi Memory (DSD)
0/1
Software
• Truck weighing
• Piece-Tare-Codes
• Piececounter
• Axes weighing
• Negative Auto Zero
• Customizable ticket’s header and footer
• Continuous PC sending.
• Up to 16 digital load cells
