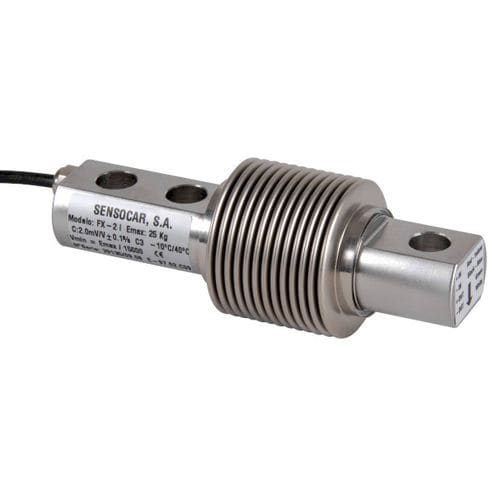

Bending beam load cell FX-2beam typeweighingfor hopper
Add to favorites
Compare this product
Characteristics
- Type
- bending beam
- Form
- beam type
- Applications
- weighing, for hopper, for silos, for bagging machines, for dosing, for mixers
- Other characteristics
- OIML, stainless steel, IP68, hermetic, explosion-proof
- Rated load
Max.: 1,500 kg
(3,306.93 lb)Min.: 10 kg
(22.05 lb)
Description
Applications
Animal Weighing
Lever System platforms
Multihead weigher
ATEX areas
4 load cells platform
Divisions Up to 4000 divisions OIML-R60
Material Fully stainless steel
IP Rating IP-68
Accuracy Class C3-C4
Rated Output (RO) 2mV/V
Output ratio error (RO%) ± 0,1%
Vmin Emax/15000
Excitation voltage 5...15V
Input resistance 350 ± 5Ω
Output resistance 350 ± 3Ω
Zero balance ± 1Ω
Compensated temperature range -10...+40℃
Operating temperature range -35...+70℃
Storage temperature range -40...+80℃
Safe load limit 150% Emax
Insulation resistance >5000M Ω
Cable length 5m
