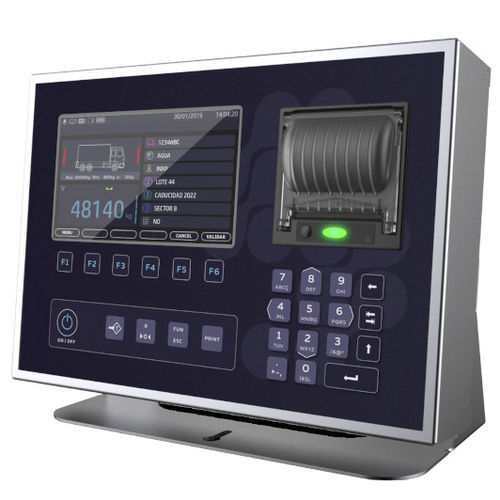

Digital weight indicator SCA-31 series
panel-mountbenchtopwall-mount

Digital weight indicator - SCA-31 series - SENSOCAR - panel-mount / benchtop / wall-mount
Digital weight indicator - SCA-31 series - SENSOCAR - panel-mount / benchtop / wall-mount
Digital weight indicator - SCA-31 series - SENSOCAR - panel-mount / benchtop / wall-mount - image - 2
Digital weight indicator - SCA-31 series - SENSOCAR - panel-mount / benchtop / wall-mount - image - 3
Add to favorites
Compare this product


Characteristics

Display
digital
Mounting
panel-mount, benchtop, wall-mount
Output
Ethernet
Other characteristics
stainless steel, multifunction, programmable, battery-powered
Applications
for weighbridges

Description

Technical specifications Keyboard Alphanumerical keyboard Material Stainless steel Homologation OIML R76//EN 4550 10.000e Clase III Display Graphic screen 7' (800 x 480px) Dimensions 33,4x15,0x24,9 cmmm Temperature range -10 to 40℃ A/D Converter 24 bits (1.000.000 div) Min. input voltage per verification scale interval 0,6μV Voltage of the measuring range 5 - 15mV Minimum load cell impedance 40Ω Max. signal voltage for dead load 10mV Electromagnetic susceptibility 10V/m Power supply 80 - 264VAC Alibi Memory (DSD) 1 Communications Protocols Sensoc (ASCII Protocol), Modbus TCP, Modbus RTU/ASCII RS232 Port 1/2 RS485 Port 0/1 USB 2 Host, 0/1 Device Ethernet 0/1 Software • 5 types of weights (Entrance/Exit, Manual Tare, Memorized Tare, Direct Ticket and Manual weight) • Historical up to 1000 weights • 5 TABLES to include data such as product, company, origin, destination, etc. • +500 Records per table • Export and Import of table records in .csv files to view or edit in a spreadsheet • Configurable Ticket and Reports • User profiles • Load cell diagnostic
