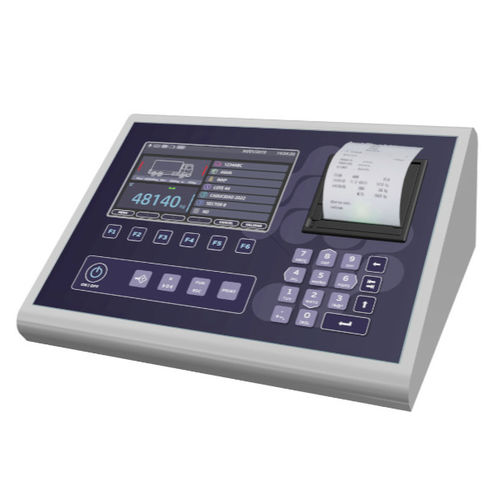

Digital weight indicator SC-A30 series

panel-mountbenchtopwall-mount

Technical specifications Keyboard Alphanumerical keyboard Material Stainless steel Homologation OIML R76//EN 4550 10.000e Clase III Display Graphic screen 7' (800 x 480px) Dimensions 33,4x13,2x24,8 cmmm Temperature range -10 to 40℃ A/D Converter 24 bits (1.000.000 div) Min. input voltage per verification scale interval 0.6μV Voltage of the measuring range 5 - 15mV Minimum load cell impedance 40Ω Max. signal voltage for dead load 10mV Electromagnetic susceptibility 10V/m Power supply 80 - 264VAC Alibi Memory (DSD) 1 Communications Protocols Sensoc (ASCII Protocol), Modbus TCP, Modbus RTU/ASCII RS232 Port 1/2 RS485 Port 0/1 USB 2 Host, 0/1 Device Ethernet 0/1 Software • - 5 types of weights (Entrance/Exit, Manual Tare, Memorized Tare, Direct Ticket and Manual weight) • - Historical up to 1000 weights • - 5 TABLES to include data such as product, company, origin, destination, etc. • - +500 Records per table • - Export and Import of table records in .csv files to view or edit in a spreadsheet • - Configurable Ticket and Reports • - User profiles • - Load cell diagnostic
