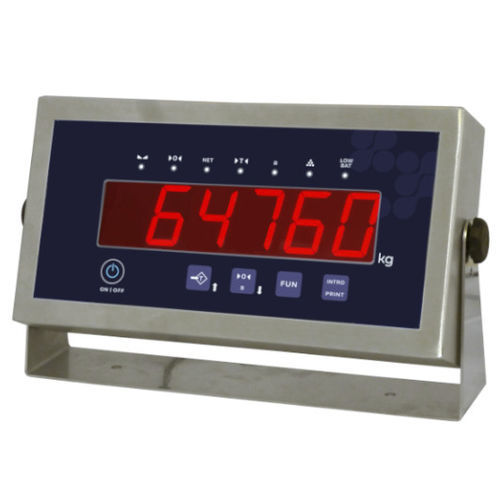

Remote weight repeater SCA40

LED displaybenchtopRS-232

• Weight repeater with 6 digits of 40 mm • High contrast red LED digits • Adapted communication protocols for the connection to commercial indicators of different manufacturers  Keyboard 5 function keys Material Stainless steel, ABS Homologation OIML R76//EN 4550 10.000e Clase III Temperature range -10 to 40℃ A/D Converter 24 bits (1.000.000 div) Min. input voltage per verification scale interval 0.6μV Voltage of the measuring range 5 - 15mV Minimum load cell impedance 40Ω Max. signal voltage for dead load 10mV Electromagnetic susceptibility 10V/m Power supply 80 - 264VAC Alibi Memory (DSD) 0/1 Communications Protocols Sensoc (ASCII Protocol), Modbus TCP, Modbus RTU/ASCII RS232 Port 1/2 RS485 Port 0/1
