- Rectangular photoelectric sensor
- SensoPart Industriesensorik GmbH

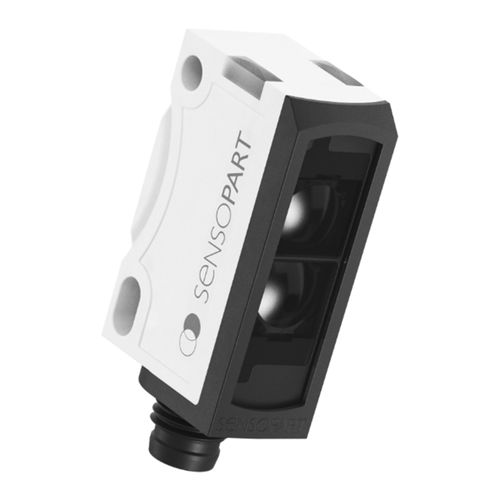

Diffuse reflective photoelectric sensor FT 25-BF2reflex typerectangularLED
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse reflective, reflex type
- Housing
- rectangular
- Type of beam
- LED, blue light
- Other characteristics
- miniature
- Applications
- for plastics
- Maximum range
Max.: 80 mm
(3.1 in)Min.: 0 mm
(0 in)
Description
- Miniature sensor with BlueLight technology and precise fixed background suppression
- Reliable switching behaviour with strongly light-absorbing and highly transparent objects
- Reliable operation without reflector - even with critical surfaces
- Tamper-proof sensor design - no misalignment possible
- Simple mounting and adjustment through innovative dovetail clamp mounting
Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series
F25 (34 x 20 x 12 mm): Working distance min. [mm]
0
Working distance max. [mm]: 80
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +40
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP69
