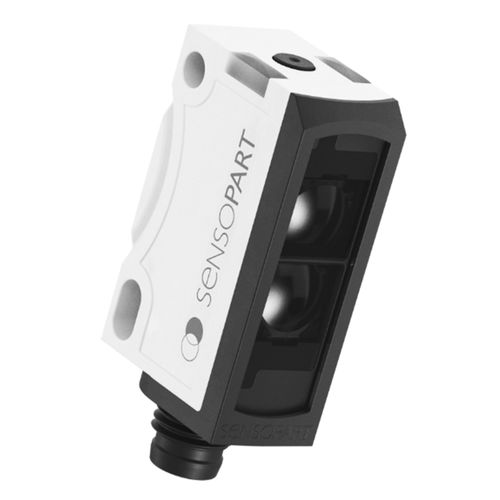

Diffuse reflective contrast sensor FT 25-RGB

rectangularRGBminiature

The FT 25-RGB is a compact and swift contrast scanner, measuring just 34 x 20 x 12 mm³. It employs multicolor evaluation and selects the most suitable emitting color (red, green, or blue) based on the object's color, ensuring highly dependable detection of even subtle contrast variations. It boasts impressive specifications, including a minimum response time of 20 µs, minimal jitter of 10 µs, and a switching frequency of up to 25 kHz. These attributes make it an excellent choice for achieving precise positioning and reliable detection in fast-paced processes. Highlights: ⯀ Precise detection of the slightest of contrast differences through multi-colour RGB evaluation ⯀ Very robust operation despite fluttering and glossy objects ⯀ Simple alignment thanks to very precise and easily visible light spot ⯀ Housings that are many times smaller than standard housings – and offer better performance ⯀ Very high positioning accuracy with 10 µs scanning
