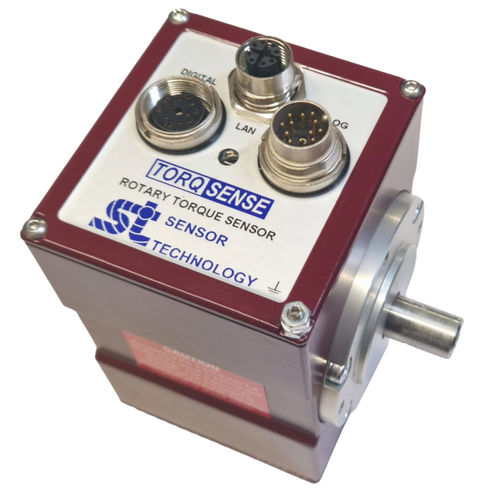

Rotary torque transducer SGR520

RS-232USBCAN Bus

New for 2020 is the TorqSense Digital rotary strain gauge series (SGR) torque transducer which uses non contact technology eliminating the need for noisy slip rings. The SGR510/520 series torque sensors are suitable for torque measuring, testing, feedback control of drive mechanisms and process control applications. The SGR series transducers use modern strain gauge signal conditioning techniques to provide a high bandwidth low cost torque measuring solution with high overrange and overload capabilities. Key Benefits – SGR510/520 Torque Sensors: • Transducers from 175mNm to 13000Nm • Large fully functional overrange capability of 250% (SGR520) • Minimal side and end load errors • Low linearity deviation of ± 0.05% FSD • Low hysteresis error of ± 0.05% FSD • Zero variation in torque signal with rotation (cyclic variation) • Non contact signal transmission, no slip rings to wear out • High digital sample rate of 4000 samples per second • Adjustable torque data smoothness, low pass filter (SGR520) • Speed measurement / Power computation • Wide power supply range 12-32 VDC • Compatible with ethernet gateway module • Lifetime Warranty Whereas, TorqSense SGR520 Series transducers offer: • Digital outputs such as RS232, CANbus and USB for interfacing with modern instrumentation and laptops • Digital input for configuring transducer via PC • 2 x user selectable voltage or current analog outputs (one for torque and the other for speed, power or peak torque) for interfacing with analog instrumentation • Transducer configuration software to allow user to change transducer variables
