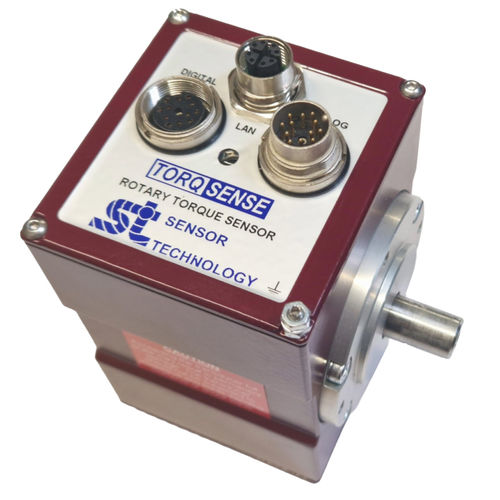

Rotary torque transducer SGR521

RS-232USBCAN Bus

New for 2020 is the TorqSense Digital rotary strain gauge series (SGR) torque transducer which uses non contact technology eliminating the need for noisy slip rings. The SGR510/520 series torque sensors are suitable for torque measuring, testing, feedback control of drive mechanisms and process control applications. The SGR series transducers use modern strain gauge signal conditioning techniques to provide a high bandwidth low cost torque measuring solution with high overrange and overload capabilities. If you require separate electronics, please see our SGR530/540 Series transducers. Key Benefits – SGR510/520 Torque Sensors: • Transducers from 175mNm to 13000Nm • Large fully functional overrange capability of 250% (SGR520) • Minimal side and end load errors • Low linearity deviation of ± 0.05% FSD • Low hysteresis error of ± 0.05% FSD • Zero variation in torque signal with rotation (cyclic variation) • Non contact signal transmission, no slip rings to wear out • High digital sample rate of 4000 samples per second • Adjustable torque data smoothness, low pass filter (SGR520) • Speed measurement / Power computation • Wide power supply range 12-32 VDC • Compatible with ethernet gateway module • Lifetime Warranty
