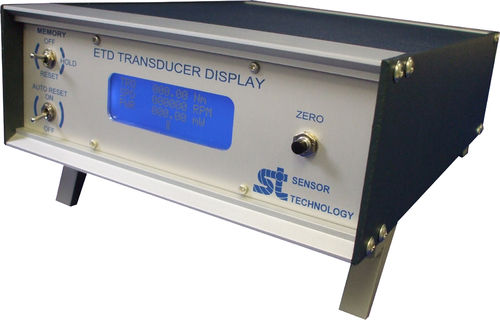

Bench-top torque meter ETD

for torque and angle measurementdigitalUSB

ETD Transducer Display Interface The Transducer Display ETD is a readout suitable for all RWT transducers. Although it is primarily used to display torque and peak torque, it can also display speed and power, provide access to the analog outputs from the transducer and connect the transducer to a PC for use with TorqView and the Transducer Control Program. Key Benefits: Displays torque, peak torque, speed* or power* in the units specified within the transducer Automatically detects and displays the model, range, serial no. and calibration due date of the transducer Provides auto reset of peak torque values Provides power to the transducer in place of the standard power supply unit Provides access to analog torque outputs and pulse speed* output Provides USB output if used with RWT420/440 series with USB option fitted Displays warnings and high temperature if appropriate * Provided RWT transducer has speed option fitted and enabled Technical Data: Display - LCD 20 x 4 STN BLUE Display update rate - 4Hz Overall size - 220w x 290d x 100h (Aluminium enclosure) Weight - 1.76 kg Operating temperature range - -10°C – 50°C Power supply - 90-250v AC, 50-60Hz, 10W, IEC connector Channel 1 analog output - As specified by transducer Channel 2 analog output - As specified by transducer Pulse RPM Out - TTL compatible Serial output - USB Type B Connection to transducer - Cable ACC-04
