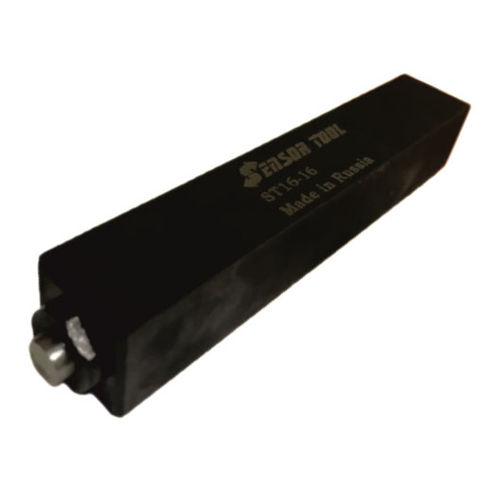

External burnishing tool ST-16

diamond

Diamond Burnishing tool ST-16 is used for superfinishing the surface of steels, stainless steels, cast iron, alloy parts. Tool can be used on small machining centers, table lathes and milling machines, swiss-type machines. Supplied with fixed burnishing force, for processing one type parts. Workpart shapes - cylinder, body of rotation, spherical part, tapers, cones. Workpiece diameter starting from diameter Ф 5 mm Metric Toolholders 12x12 , 16x16 mm Inch toolholders 1/2" , 5/8" Indenters (diamond inserts) made of natural diamond The tool completely replaces the grinding and polishing machines. Our tool kills costs for extra personnel, grinding machines, consumables, re-installation and re-basing of parts . During processing, the roughness is smoothened to the level Ra = 0.2 ..... 0.05 ? um in one or two passes Can be used on CNC machines/universal lathes. To obtain a stable micro profile of a surface , we recommend to use ST-1 on machines that can provide finishing turning! Materials: any structural steel max HRC 64 Roughness before processing: no more than Ra = 1.25 ?m High-precision diamond tools. Metal burnishing. These diamond tools are designed to increase surface hardness through the cold-working process and compressive forces, and they increase metal’s resistance to fatigue and failure at stress points while producing a dense and uniform surface. They are available in inch and metric slim-line, square, offset, on-center, stick and boring bar styles. With cycle times that are measured in seconds rather than minutes, diamond burnishing allows companies to achieve a consistent mirror-like finish and replace hand polishing. Economical
