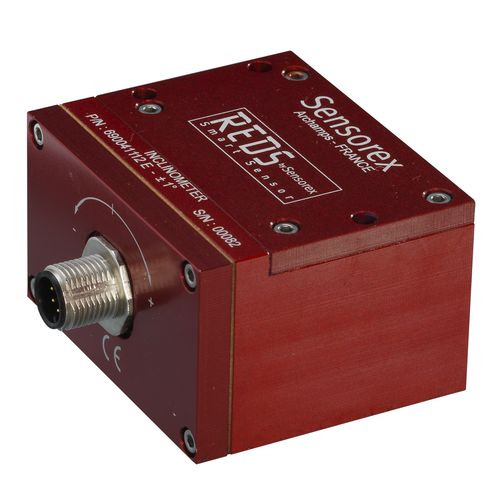

2-axis inclinometer SX41100 series

digitalanalogclosed-loop gravity

Meggitt (Sensorex) high-performance analog/ digital servo-inclinometers provide an output signal proportional to the angle of measurement, with choice of ±5V analogue or 4-20mA, and RS 232 or RS 485 digital outputs, and a maximum linearity error specification of less than ±0.02% FS as standard. Series units feature built-in active digital temperature compensation for reliable operation over an operating temperature range of -40°C to +85°. Incorporation of an inertial mass with servo feedback, optical position pick-up and friction free mounting allows the Meggitt (Sensorex) SX41100 serie to provide high accuracy with excellent long term stability and reliability. Because the inertial mechanism is oil immersed, units have high shock and vibration resistance with a good damping factor. Units also operate from a 9-to-30VDC unipolar power supply and feature IP65 sealing. They are delivered with software and digital data transmitted in ASCII format, allowing for direct communication with a standard PC with user-selectable inertial measurement data acquisition and display parameters. Applications Civil structural monitoring Crane and offshore platform safety Roadway and track leveling Ordance aiming systems Characteristics Analog & digital output (configurable on PC) Configuration and display software Designed for use in severe environments (shocks, vibrations, electro-magnetic perturbations) Very good long term stability High performances Conform to CE norm EN 61326 Oil damped with servo mechanism
