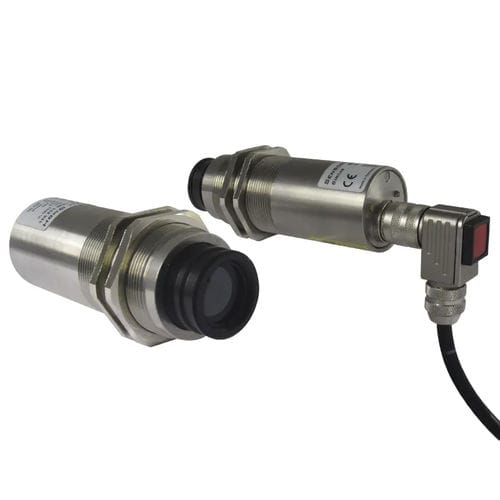

Digital pyrometer SIRIUS SS09°C°FRS485
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Units of measurement
- °C, °F
- Communication
- RS485, 4-20 mA
- Other characteristics
- non-contact
- Temperature
Max.: 1,800 °C
(3,272 °F)Min.: 550 °C
(1,022 °F)- Resolution
0.1 °C
(32.18 °F)- Spectral range
Max.: 1.8 µm
Min.: 0.7 µm
- Response time
Max.: 10 ms
Min.: 5 ms
Description
1-color pyrometer in the short-wave spectral range for non-contact temperature measurement on metals, ceramics, graphite and many other materials
• Focusable optics for continuous adjustment of the focus distance
• Laser targeting light to display the focus distance and center of the spot size
• 0 or 4-20 mA analog output
• Optional RS232 or RS485 interface for device adjustment and digital temperature evaluation on a PC or a PLC
• Digital input for external switching the targeting light or manual deletion of the peak picker via contact
Catalogs
Sirius SS09 / SI16
4 Pages
Scanning Mirror Adapter SC10
2 Pages
