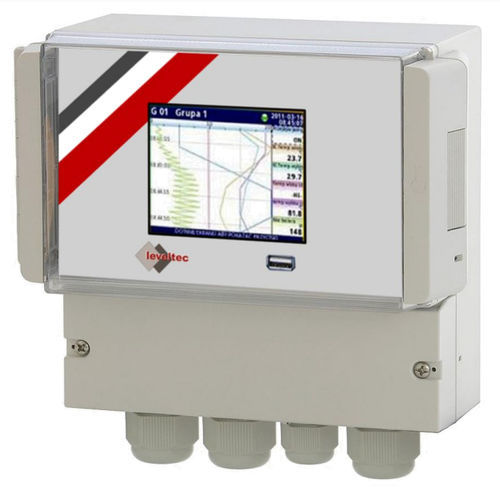

Volume flow meter FLC-16

for liquidswall-mounted4-20 mA

The FLC-16 is a universal digital meter and controller for flow and level applications. It provides different inputs and outputs according the customer requirements for calculation, regulation or control of different processes. Dimensions: 166x161 x103 mm; wall mounting ABS enclosure; protection class: IP 65 (NEMA 4) Operating temperature: 0 to 50 ºC; display: 3.5 inch; display mode: Numerical mode, graphic bars, Graphic charts or needle dials; more than one language; standard measures: Fluid velocity, water level and Flow; serial communication: Standard RS485 MODBUS + USB; 2 analog outputs 4-20 mA (optional 4 current outputs); Internal data logger (optional): Up to 8 GB; email notifications (optional) Available different options (up on request) (Mathematic operations between two different inputs; flow calculations; Level to flow conversions; Specific curves linearization; Flow/level/pressure controls; land or bus communication; Valves control; flow, level regulation... etc.
