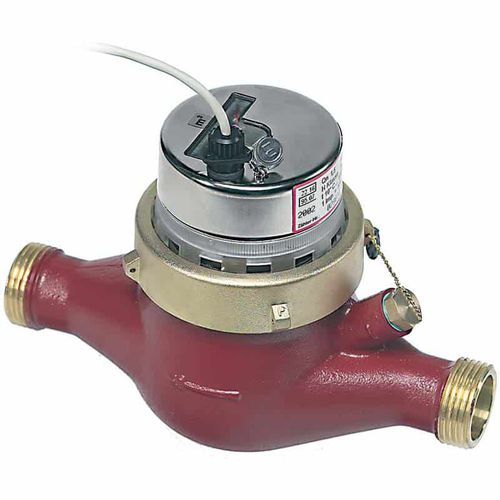

Impeller flow sensor AN 130

vanemagneticvolume

AN 130 Flow Sensor is a multi-jet, dry-dial, vane-impeller hot water meter. It can be installed in central heating and cooling systems and remote warning systems. With its built-in pulse sender, it is approved for heating meters according to the European measuring instruments directive (MID) 2004/22/EG. Versions for horizontal, rising and falling flow directions with screwings (PN 16) or flanges (horizontal flow, PN 25) are available. Benefits to you Ideally applicable for 6/12 °C chilling systems due to the high temperature range of the flow sensor from 5 to 130 °C Can be used with water glycol mixtures due to mechanical measuring principle Features Fully dry-dial meter with no gear reduction in the wet chamber Wear-resistant tungsten carbide/sapphire bearing Magnetic coupling protected against magnetite Pulse sender safe from interference Easy-to-repair construction with external regulation Specifications Pattern approval: DE-12-MI004-PTB002 Approval in class 2 according to EN 1434, measuring range (minimum to nominal flow) of 1 : 100
