Analog amplifier signalmeasuringelectronic
Add to favorites
Compare this product
Characteristics
- Type
- signal
- Secondary function
- measuring
- Other characteristics
- electronic, analog, for load cells, miniature
- Voltage
Max.: 10 V
Min.: 0 V
- Current
Max.: 20 mA
Min.: 4 mA
Description

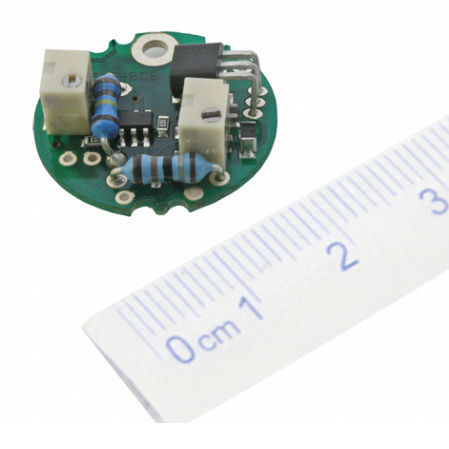

STRAIN-GAUGE EMBEDDED ANALOGUE AMPLIFIERS
These analogue amplifiers convert the signal from a Wheatstone bridge (mV/V) into a robust industrial standardised analogue signal.
o Internal or external mounting depending on the size of the transducer
o If external, cylindrical housing in nickel-plated brass (IP67) or rectangular box in aluminium (low-cost version) (IP65)
o Available version with shifted zero for bidirectional utilisation for versions 4...20 mA and 0...10 V.
o Protection against inversion of polarity
o Cable length: 0.15 m between the amplifier housing and the transducer (max. 0.5 m)
