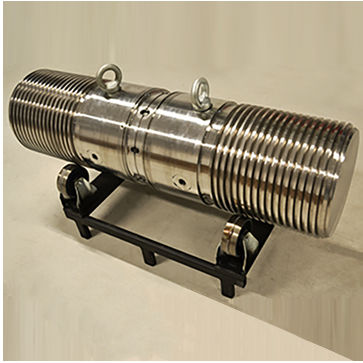

Tension/compression load cell CSM 3.2

beam typecapacitivecalibration

Tension and compression load cells very high capacities Reference : A tension-compression standard transducer with a very high measuring range: 27 MN developed for the calibration of a tension and compression test bench This type of transducer is always custom-made to fit the dimensions of the testing machine and the mounting accessories of the customer. In addition, custom-loading accessories are required for calibration and qualification in a certified metrology institute. Specifications: Measurement range : 27 MN in traction and compression Accuracy : Certified class "0.5" accordintg to ISO376 Material : Alloy steel Height : 1,46 m (57,48") Diameter : 0.45 m (17,72") Threads : TR 400x24 Protection class : IP66 Weight : 1421 kg (3132,77 lb)
