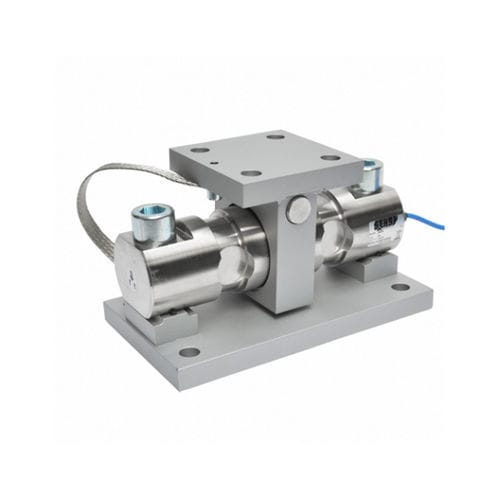

Double-ended shear beam load cell 2600beam typestrain gaugedigital
Add to favorites
Compare this product
Characteristics
- Type
- double-ended shear beam
- Form
- beam type
- Technology
- strain gauge
- Output signal
- digital
- Applications
- weighing, for silos
- Other characteristics
- stainless steel, high-capacity, temperature-compensated, with amplified output, IP67, IP68, explosion-proof
- Rated load
Max.: 75 t
(82.67 us ton)Min.: 10 t
(11.02 us ton)- Length
230 mm, 280 mm, 300 mm, 520 mm
(9.055 in, 11.024 in, 11.811 in, 20.472 in)- Height
150 mm, 180 mm, 250 mm
(5.91 in, 7.09 in, 9.84 in)
Description
DOUBLE SHEAR BEAM LOAD CELLS
Reference : 2600
Load cells for silo weighing combining a sturdy design with easy installation.
o Material: stainless steel
o Protection class: IP67
o Mounting kits available with following properties:
- stabilisation without tension rods
- compensation of thermal dilatations
- compensation of defective alignment
o Cable length: see drawing table - CL (other lengths available on request)
Application(s) SENSY’s load cells 2600 are perfectly designed for the following applications:
- High-capacity silos, tanks or hopper weighing (indoor and outdoor),
- Reactors and mixers weighing (vibrating),
- Weighing in potentially seismic areas.
