Single-point load cell 2022compression3-axisstrain gauge
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- single-point
- Number of axes
- 3-axis
- Technology
- strain gauge
- Applications
- weighing, for hopper
- Other characteristics
- OIML, aluminum alloy, temperature-compensated, with amplified output, explosion-proof
- Rated load
Min.: 100 kg
(220.46 lb)Max.: 500 kg
(1,102.31 lb)- Length
146 mm
(5.748 in)- Height
90 mm
(3.54 in)
Description

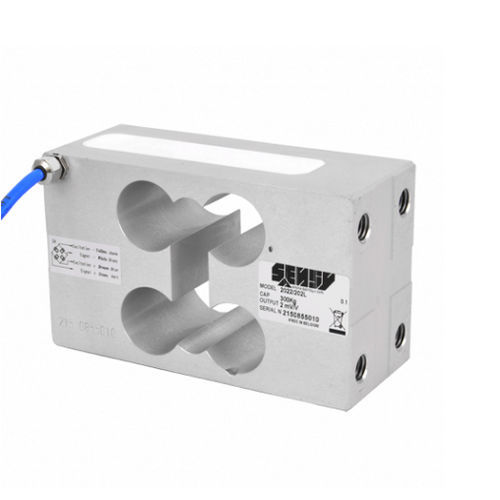

SINGLE POINT LOAD CELL "OFF CENTER"
Reference : 2022
Single point load cell specially designed for platform and hopper weighing.
- Designed for off-center load
- Maximum platform size: 800 x 800 mm
- Material: anodised aluminium alloy
- Easy to install
- Complies with OIML / R60 up to 3000 d for scales in class III according to EN 45501
- Cable length: 3 m (other lengths available on request)
Application(s) SENSY’s load cell 2022 is perfectly designed for the following applications:
- Industrial scales and platforms, retail and computing scales, airport weighing scales.
- Medium-sized hoppers weighing, filling, packaging and batching applications.
