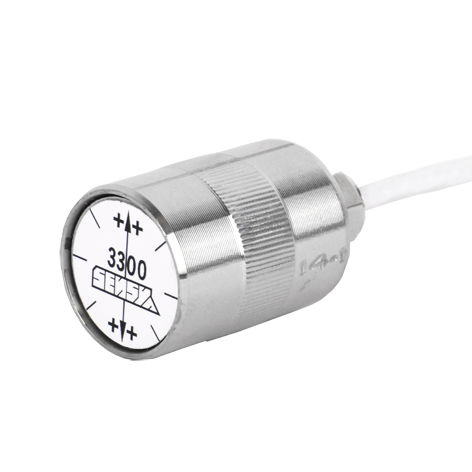

Strain gauge extensometer 3300

INSERTABLE STRAIN SENSOR - INSERTGAGE® Reference : 3300 Insertable extensometer designed to measure the force in a structure o Designed to measure: - tension, compression shear and bending force - torque o One unique model regardless of the capacity range o Material: stainless steel o Protection class: IP67 o Very competitive prices o Easy to install (one hole to drill) o Accuracy in the structure: 2 to 5 % o Cable length: 0.25 or 5 m (other lengths available on request) Application(s) SENSY’s insertable strain sensor 3300 is perfectly designed for the following applications: - Silos, hoppers, tanks, reactors or containers weighing, - Level measurement, - Stress measurement on machines, - Force distribution control, - Rail weighing, - Set-point detection.
