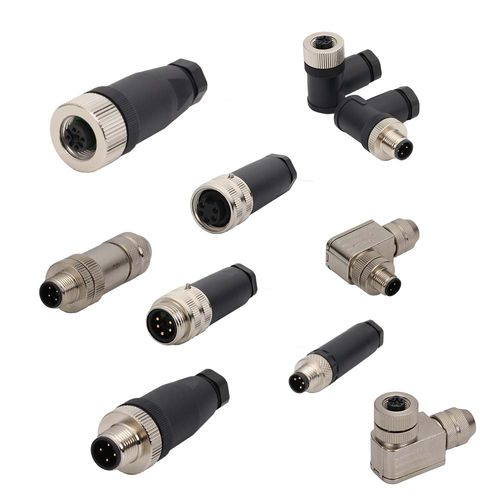

Electrical power supply connector BKM3-0straightfemaleM8
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- straight
- Connection type
- female
- Size
- M8
- Electrical characteristics
- insulation
- Material
- Viton®
- Protection class
- IP67
- Other characteristics
- field-attachable
- Primary current
4 A
- Voltage
Min.: 10 V
Max.: 30 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)
Description
M8 Field-Wireable Connector
Female ，3-pin，Straight
Plastic shell
Mounting specifications
Rated voltage
10-30VDC
Rated current
4A
Insulation resistance
≥10^9Ω
Ambient temperature range
-40-85℃
Cable diameter
3...5mm
Contacts
CuZn
Contact surface
CuZn-CZS
Seal
Viton
