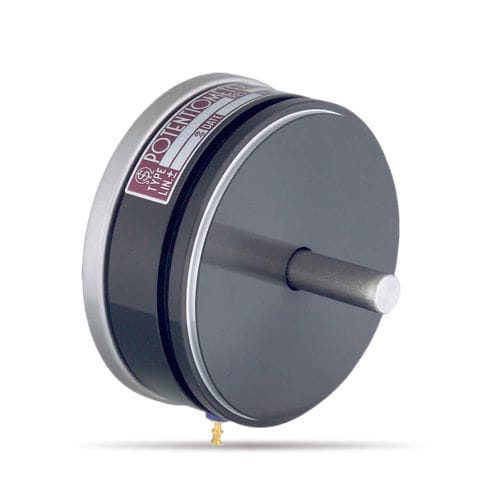

Rotary potentiometer FCP50A

manualconductive plasticprecision

FCP50A Conductive Plastic Potentiometer - 1-turn conductive plastic potentiometer - Servomount - RoHS compliant General Specifications - Standard resitance value: 1K, 2K, 5K, 10K (Ω) - Special practical resistance value: 500, 20K, 50K, 100K, 200K, 500K (Ω) - Total resitance tolerance: Standard class ±10% (K) - Independent linearity tolerance: Standard class ±0.5%, Precision class ±0.2%, Super precision class ±0.05% - Resolution: Essentially infinite - Output smoothness: Within 0.1% against input voltage - Contact resistance variation: Within 2% C.R.V. - Power rating: 3.0W - Electrical travel: 350°±5° - Mechanical travel: 360° (Endless) - Insulation resistance: >1,000MΩ at 1,000V.D.C - Dielectric strength: 1 min. at 1,000V.A.C - Starting torque: Within 4mN.m (40gf.cm) - Resist. temperature coefficient of wire: ± 400p.p.m./ ℃ Special Specifications Available - Extra taps (available up to 3 taps) - Multi-ganged ((available up to 7 gangs) - Shaft with front and rear extension - With stopper - Special electrical travel - Shaft diameter with inch dimensions - Special machining on the shaft. Please contact us at trade1@sakae.cn for FCP50A customization.
