Absolute angle encoder HSM30 seriesHall effectpotentiometernon-contact
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- Hall effect, potentiometer
- Construction
- non-contact, single-turn, solid-shaft
- Output signal
- analog, voltage output
- Supply voltage
- 5 VDC
- Material
- stainless steel, aluminum
- Protection level
- explosion-proof, rugged, shock resistant, vibration-resistant, secure
- Applications
- industrial, for motors, for OEM, for harsh environments
- Other characteristics
- compact, miniature, IC
- Housing diameter
30 mm
(1.18 in)- Shaft diameter
6 mm
(0.24 in)- Length
43.3 mm
(1.705 in)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)
Description

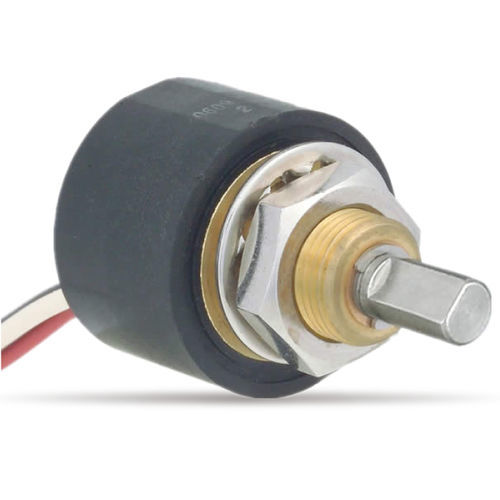

HSM30.HSM30F 1-turn Contactless Potentiometer
- Hall effect IC type
- HSM30 (Bushingmount type)
- HSM30F (A combined type with bushingmount and flange-mount)
- RoHS compliant
General Specifications
- Current consumption: Single output Approx. 16mA, Dual output Approx. 32mA
- Independent linearity tolerance: ±0.5%FS (FS=360°)
- Mechanical rotating angle: 360° (Endless)
- Effective electrical angle: 360° (Endless)
- Applied voltage: 5V±10%D.C.
- Effective Output: 0.5~4.5V
- Load resistance: >10 KΩ
- Operating temperature range: -40℃~+120℃
- Storage temperature range: -40℃~+120℃
Environmental Specifications
- Thermal shocks: 5 cycles -50℃~+125℃
- Exposure at low temperature: 24 hours at - 50℃
- Exposure at high temperature: 1,000 hours at +125℃
- Vibration: 10 to 2,000Hz 196m/S2 12hours
- Shock: 980 m/S2 (18times)
- Mechanical life expectancy: 50,000,000 shaft revolutions
Special Specifications
- Special effective electrical angle (90°, 180°, 270°)
- Special machining on shaft
- Special output (Cross, parallel, Dual independent output)
Please contact us at trade1@sakae.cn for HSM30.HSM30F customization.
