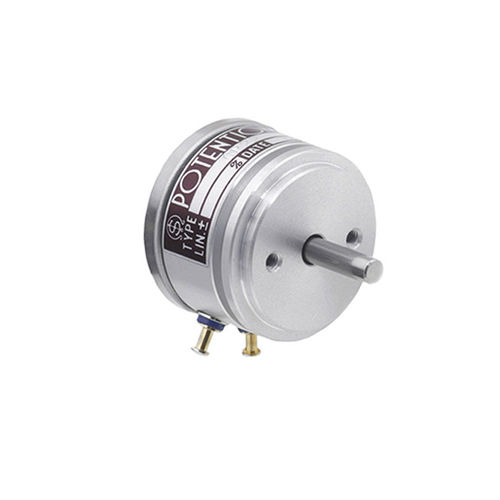

Single-turn potentiometer CP22

manualwire-woundprecision

CP22 Wirewound Potentiometer - 1-turn wirewound potentiometer - Servomount - RoHS compliant General Specifications - Standard resitance value: 50~10KΩ - Max. practical resistance value: 20KΩ - Total resitance tolerance: Standard class ±3% (H), Precision class±1% (F) - Independent linearity tolerance: Standard class ±0.5%, Precision class±0.2% (±0.3% in case of within 1 KΩ) - Power rating: 0.5W - Noise: Within 100Ω E.N.R. - Electrical travel: 355°±5° - Mechanical travel: 360° (Endless) - Insulation resistance: >1,000MΩ at 1,000V.D.C - Dielectric strength: 1 min. at 1,000V.A.C - Starting torque: Within 1.5mN.m (15gf.cm) - Resist. temperature coefficient of wire: ± 20p.p.m./ ℃ Special Specifications Available - Lower resistance value (10Ω,20Ω) - Extra taps (available up to 2 taps) - Multi-ganged ((available up to 5 gangs) - Shaft with front and rear extension - With stopper - Special electrical travel - Shaft diameter with inch dimensions - Special machining on the shaft. Please contact us at trade1@sakae.cn for CP22 customization.
