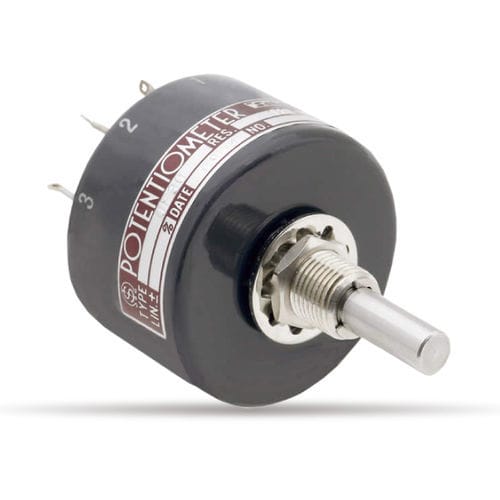

Rotary potentiometer OF30

manualwire-woundprecision

OF30 Oil-filled Potentiometer - Precision 1-turn wirewound potentiometer - Bushingmount - RoHS compliant General Specifications - Standard resitance value: 500~10KΩ - Max. practical resistance value: 20KΩ - Total resitance tolerance: Standard class ±10% (K), Precision class ±5% (J) - Independent linearity tolerance: Standard class ±2.0%, Precision class ±0.5% - Power rating: 0.75W - Noise: Within 100Ω E.N.R. - Electrical travel: 280°±5° - Mechanical travel: 360° (Endless) - Insulation resistance: >100MΩ at 1,000V.D.C - Dielectric strength: 1 min. at 1,000V.A.C - Starting torque: Within 30mN.m (300gf.cm) - Resist. temperature coefficient of wire: ± 20p.p.m./ ℃ Special Specifications Available - Special lower resistance value (50Ω to 200Ω) - Extra taps (available up to 1 tap) - Special electrical travel - With stopper - Shaft diameter with inch dimensions - Special machining on the shaft. Please contact us at trade1@sakae.cn for OF30 customization.
