Absolute angle encoder WDH22Bmagneticpotentiometer12-bit
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- magnetic, potentiometer
- Absolute encoder revolution number
- 12-bit
- Construction
- non-contact, single-turn, solid-shaft
- Output signal
- analog, voltage output
- Supply voltage
- 5 VDC
- Material
- stainless steel, aluminum
- Protection level
- explosion-proof, rugged, shock resistant, vibration-resistant, rugged, secure, IP40, robust
- Applications
- industrial, for motors, for OEM, for harsh environments, exterior
- Other characteristics
- compact
- Housing diameter
22 mm
(0.87 in)- Shaft diameter
6 mm
(0.24 in)- Length
38.8 mm
(1.528 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 1,500 rpm
(9,425 rad.min-1)- Process temperature
Min.: -30 °C
(-22 °F)Max.: 125 °C
(257 °F)
Description

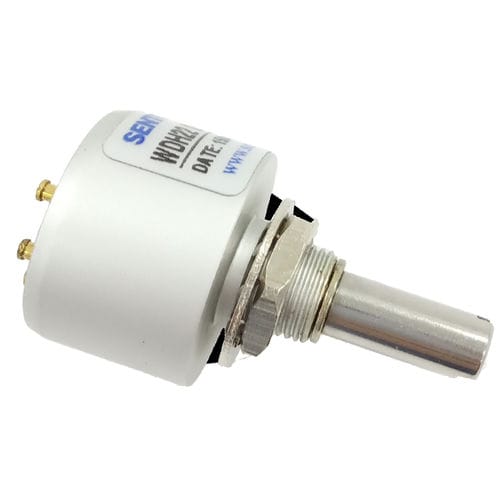

WDH22B Series 1-turn Contactless Potentiometer (Patented)
- Magnetic rotary sensor
- Economy version
- With a precisoion ball bearings
- With solder terminals
- Bushingmount
- Housing diameter Φ22mm
- Output direction: Clockwise (W), Counterclockwise (C)
- Effective electrical angle: Any angle within 360°
Gerneral Mechanical Specifications
- Mechanical angle: 360° (Endless)
- Protection degree: IP40
- Operating torque: <2mN.m
- Max. speed: 1500 rpm
- Life expectancy: 50,000,000
Environmental Specifications
- Operating temperature range: -30°C~+125°C
- Storage temperature range: -30°C~+125°C
Genearal Electrical Specifications
- Standard model: WDH22B 0505 W360
- Input voltage: 5V±10%
- Output signal: 0~5V
- Current consumption (no-load): <16mA
- Output deviation of both ends: 10KΩ
- Effective electrical angle: 360°
- Independent linearity tolerance: ±0.3%
- Resolution: 4096（12bit)
- Update rate: 0.3ms
Special Specifications Available
- Available for PWM.
For other special requirements, please contact us at trade1@sakae.cn
