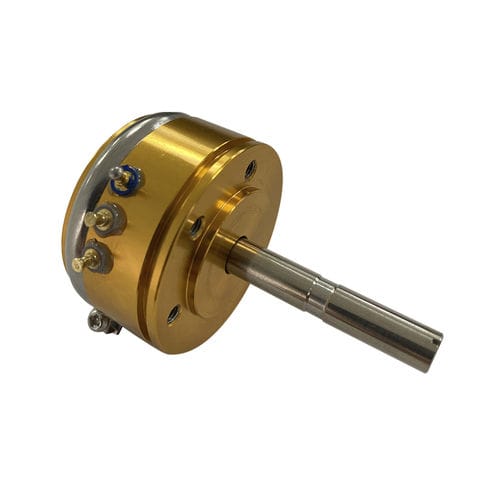

Single-turn potentiometer WDD35D1

manualconductive plasticprecision

WDD35D1 Series Precision Single-turn Conductive Plastic Potentiometer - 1-turn Conductive plastic potentiometer - Economy version - Classical type - Various specifications - With a set of precision ball bearings - Application: Engineering machinery, Instruments and measuring devices, various industrial facilities. - Housing diameter: Φ35mm - Standard shaft diameter: Φ6mm - Standard resistance: 1K, 2K, 5K, 10K Genearl Mechanical Specifications - Mechanical angle: 360°（endless) - Operating torque: <1mN.m - Life expectancy: 20,000,000 - Bearing: with one couple of precision ball bearings - Housing material: Anodized aluminum alloy - Shaft material: stainless steel - Wiper material: precision metal multi-finger wiper Environmental Specifications - Operating temperature range: -55°C~+125°C - Storage temperature range: -55°C~+125°C - Shock: 50G 11ms - Vibration: 15G 10Hz~2000Hz Genearal Electrical Specifications - Standard resistance: 1K, 2K, 5K, 10K - Resolution: essentially infinite - Resistance tolerance: ±15% - Independent linearity tolerance: ±0.1% - Electrical angle: 345°±2° - Power rating: 2W - Insulation resistance: ≥1000MΩ（500V.D.C) - Dielectric strength: 500V.A.C/1 min - Output smoothness : <0.1% against input voltage - Resistance temperature coefficient: ± 400P.P.M/°C Special specifications - With stopper, electrical angle 340°C - With return device - Shaft with front and rear extension - Special machining on the shaft - Extra tap - 2-ganged - With pointer For other special requirements, please contact us at trade1@sakae.cn
