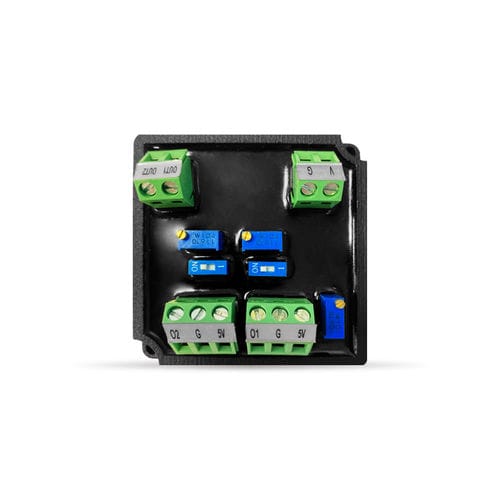

Anti-surge protection module SBP-022
Add to favorites
Compare this product
Characteristics
- Options and accessories
- anti-surge
Description
SBP-022 Series Protection Modules
- Output: 0～5V & 0～10V
- Wide voltage supply
- Can be connected to two contactless potentiometers or a dual-channelcontactless potentiometer
- Can be used with various types of contactless potentiometer of SIBO
General Mechanical Specifications
- Protection degree：IP20
- Installation mode：Screwmount
- Housing material：Black nylon
Environmental Specifications
- Operating temperature range： -20℃~+70℃
- Storage temperature range：-20℃~+70℃
General Electrical Specifications
- Applied voltage：9~30V.DC 12~30V.DC
- Output signal：0~5V.DC 0~10V.DC
- Current consumption：1 potentiometer ＜16mA, 2 potentiometers ＜24mA
- Load resistance：>100KΩ
- EFT：IEC61000-4-4 Level 2
- SURGE： IEC61000-4-5 Level 4
For other special requirements, please contact us at trade1@sakae.cn
