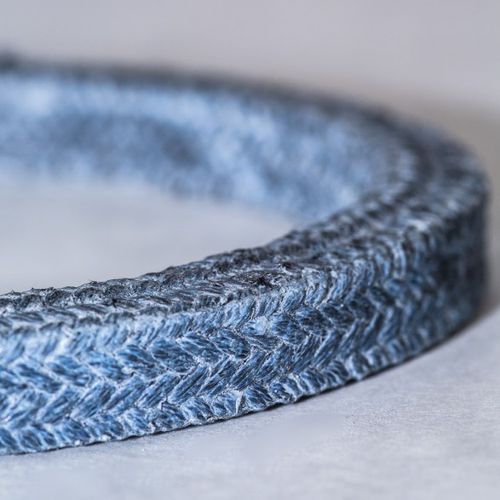

Braided PTFE packing ML4000 Series
carbon yarnfor pump

Braided PTFE packing - ML4000 Series - SEPCO - carbon yarn / for pump
Braided PTFE packing - ML4000 Series - SEPCO - carbon yarn / for pump
Braided PTFE packing - ML4000 Series - SEPCO - carbon yarn / for pump - image - 2
Braided PTFE packing - ML4000 Series - SEPCO - carbon yarn / for pump - image - 3
Braided PTFE packing - ML4000 Series - SEPCO - carbon yarn / for pump - image - 4
Braided PTFE packing - ML4000 Series - SEPCO - carbon yarn / for pump - image - 5
Braided PTFE packing - ML4000 Series - SEPCO - carbon yarn / for pump - image - 6
Braided PTFE packing - ML4000 Series - SEPCO - carbon yarn / for pump - image - 7
Braided PTFE packing - ML4000 Series - SEPCO - carbon yarn / for pump - image - 8
Add to favorites
Compare this product


Characteristics

Material
PTFE, carbon yarn
Applications
for pump
Operating temperature

260 °C
(500 °F)

Min.: 0 °C
(32 °F)

Max.: 345 °C
(653 °F)

Description

ML4461 CARBON PACKING BRAIDED THROUGH PTFEMulti-Lok braided high-purity carbon yarns made from pitch base, with a minimum carbon content of 95.0%. (Staple fibers from pitch base produce a more flexible yarn and packing than filament yarns, which tends to fracture when bent. Each individual strand is coated with pure PTFE and cured, prior to braiding. During the braiding process, pure PTFE is applied throughout the body of the packing. The packing is lubricated under hydraulic pressure with a proprietary non-petroleum lubricant, containing no sulfur, silicone, or waxes. ML4002 is engineered with finely ground particles of the highest quality graphite in a PTFE matrix to control graphite migration. SEPCO® ML4002 is 100% GFO® Yarn certified by W. L. Gore Seal of approval. This compression packing is an excellent all around packing exhibiting good thermal conductivity characteristics resulting in higher shaft speed FPM ratings. SEPCO® ML4800 is constructed with aramid fiber. Each strand is individually treated with a PTFE coating and a light, inert oil. This product is a great performer in extreme abrasive environments. Multi-Lok braided high-purity carbon yarns made from pitch base, with a minimum carbon content of 95.0%. (Staple fibers from pitch base produce a more flexible yarn and packing than filament yarns, which tends to fracture when bent. Each individual strand is coated with pure PTFE and cured, prior to braiding. During the braiding process, pure PTFE is applied throughout the body of the packing. The packing is lubricated under hydraulic pressure with a proprietary non-petroleum lubricant, containing no sulfur, silicone, or waxes.
