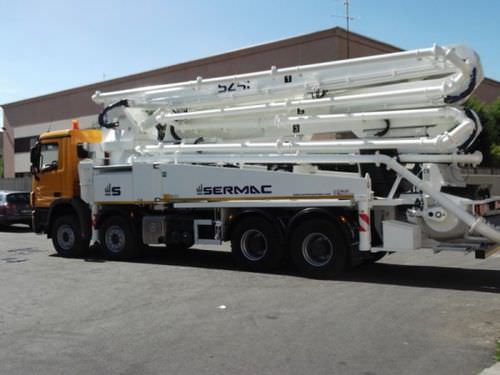

Construction truck-mounted concrete pump 130 - 184 m³/h, max. 40.8 m | ZENITH 5Z41

construction truck-mounted concrete pump
construction truck-mounted concrete pump
construction truck-mounted concrete pump
Add to favorites
Compare this product


Characteristics

Applications
for construction
Output

Max.: 184 m³/h
(6,497.9 ft³/h)

Min.: 130 m³/h
(4,590.9 ft³/h)

Description

Pump model Zenith 5Z41 is the suitable choice as far as flexibility, dynamism and reliability are concerned. Thanks to the boom with 5 sections with “Z” folding type this model is suitable for jobsites both big and medium, works inside factories, viaducts, bridge and under bridges and deeply castings like excavations, underground parking and foundations. The pump has a minimum boom opening of 6,6 m only and pipeline Ø 125 mm so as to be the ideal solution for city areas with difficult access thanks to front stabilization “X” type. In particular the pump can easily operate also in the city centres thanks to the perfect assembly on truck with 4 axles with wheelbase 4.500 mm - 5.100 mm. The pumping group with opening circuit is very reliable. Three typologies of “S” valve group from 130 m³/h to 185 m³/h and pressures till to 76 bar. Main features Self supporting frame at high torsional absorption calculated with Method of Finished Elements Assembly on 4 axles chassis Hydraulically separated controlled stabilization: front "X" type outriggers with double telescopic opening and swing-out rear outriggers Boom 5 sections "Z" folding type and pipeline Ø 125 mm (5”) Boom control by proportional distributor Boom, Minimum opening space 8.000 mm Concrete Capacity adjuster at distance Valve S8 at high performances till 185 m³/h: continuous, silent, regular pumping Total mass 32 t Proportional remote control with engine start up and emergency stop Emergency remote control with serial cable
