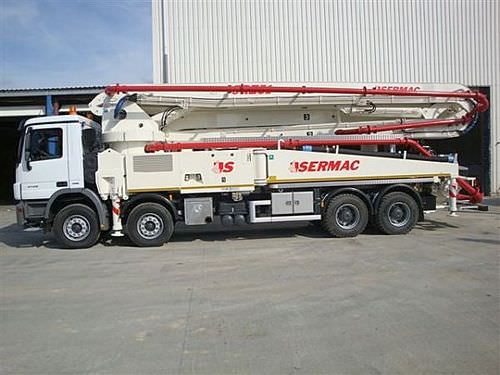

Construction truck-mounted concrete pump 130 - 184 m³/h, max. 50.1 m | SIRIO 5RZ51

construction truck-mounted concrete pump
construction truck-mounted concrete pump
construction truck-mounted concrete pump
Add to favorites
Compare this product


Characteristics

Applications
for construction
Output

Max.: 184 m³/h
(6,497.9 ft³/h)

Min.: 130 m³/h
(4,590.9 ft³/h)

Description

The concrete pump Sirio 5RZ51 has been designed to satisfy the latest market requirements between total weight and total length of equipment, furthermore concrete pumping performance, without the use of composite materials. The Sirio 5RZ51 is able to achieve record-breaking performance of weight, thanks to the extraordinary design of the office R&D SERMAC. The 5RZ51 thanks to the distributor boom in 5 sections with "RZ" is ideal application in the yards of medium-large areas such as pumping at height as elevated roads and bridges or pumping in length as slabs, foundations and walls. The length of the boom over 50 m and the pipeline Ø 125 mm make the 5RZ51 ideal for jobs which require larger flow of concrete and allows the positioning of the pump also the most difficult sites thanks to front stabilization "X" and rear outriggers. The 5RZ51 also combines a perfect assembly on truck 4 (or 5) axles with wheelbase 5.750 - 6.350 mm. Total mass on ground < 37 t and total length < 12 m. The pumping group S8 at open hydraulic circuit up to 150 m³/h concrete output and pressures till to 76 bar.
