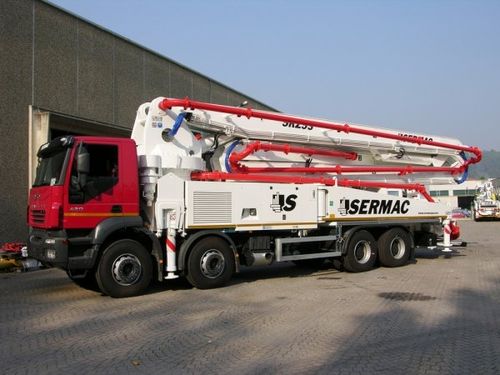

Construction truck-mounted concrete pump 130 - 184 m³/h, max. 52.8 m | SIRIO 5RZ53

construction truck-mounted concrete pump
construction truck-mounted concrete pump
construction truck-mounted concrete pump
construction truck-mounted concrete pump
Add to favorites
Compare this product


Characteristics

Applications
for construction
Output

Max.: 184 m³/h
(6,497.9 ft³/h)

Min.: 130 m³/h
(4,590.9 ft³/h)

Description

Pump model Sirio 5RZ53 is the suitable choice as far as flexibility, dynamism and reliability in medium-big jobsites are concerned. Thanks to the boom with 5 sections with mixed “RZ” folding type this model is suitable for jobsites like excavations, underground parking, commercial centres and foundations. The boom with length 52,8 m and pipeline Ø 125 mm is absolutely suitable for works that need big concrete capacity and can operate in difficult areas thanks to “X” front stabilization. The assembly on truck 4 axles with wheelbase 6.300 mmis perfect. The pumping group with opening circuit is very reliable. Three typologies of “S” valve group from 130 m³/h to 185 m³/h and pressures till to 76 bar. Main Features Self supporting frame at high torsional absorption calculated with Method of Finished Elements Excellent assembly on 4/5 axles chassis Hydraulically separated controlled stabilization: front "X" type diagonal outriggers with triple telescopic opening and swing-out rear outriggers Boom 5 sections "RZ" folding type and pipeline Ø 125 mm (5”) Boom control by proportional distributor Boom minimum opening space 10.500 mm Concrete capacity adjuster at distance Valve S8 at high performances till 185 m³/h. continuous, silent, regular pumping Total mass 43,2 t Proportional remote control with engine start up and emergency stop Emergency remote control with serial cable

Catalogs

No catalogs are available for this product.
