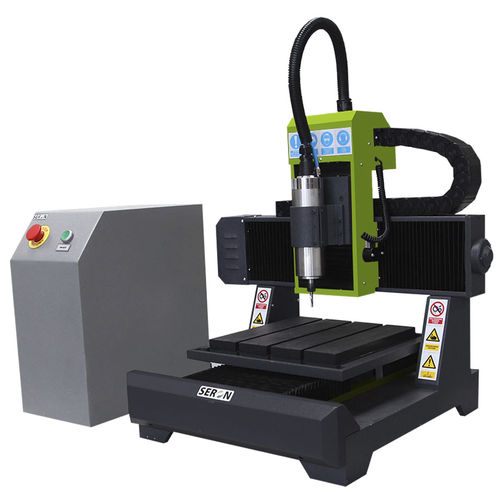

CNC router 3030 Standard

3-axis1-spindlefor wood

Product Description Router Seron 3030 Economic is the smallest CNC Milling Router in our offer. Its main purpose is machining small details with milling, engraving, drilling etc. Router is intended for the machining of PMMA, PVC, engraving plates, wood, furniture, etc. Presented CNC machining center is working in full 3D – you can for example make threads with it. CNC Milling Router comes with a CAD / CAM software in the Polish and English version. Software helps to generate G-code programs. The program allows importing drawings from other programs, for example. Corel (* .plt), AutoCAD (* .dxf). Main features: - solid cast iron construction, preventing vibration and deformation - moving worktable - moving axis Z = 80 mm - HIWIN linear guides with hardened rollers with scrapers dust ensure low friction, high rigidity and accuracy (optional: rail guides HIWIN) - German ball screws with nuts bezluzowymi provides high speed, high accuracy and durability - Advanced stepper motor drivers, function Half Current, which limits the holding current engine so that it greatly reduces overheating of the engine - Professional brushless spindle 800 W powered by the inverter ensures high operating speed. Applied Industrial bearings provide low noise even at high speeds and great durability. The spindle is cooled by a closed water circuit. The scope of the spindle 6000 – 24000 rev / min. Were installed ER11 collet, which may include the bushings from 0.5 to 7 mm. Milling router included two collets ER11.
