Plasma cutting machine

for aluminumfor titaniumfor steel

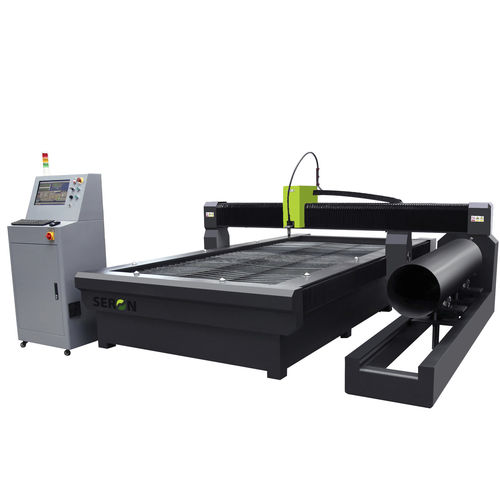

Product Description CNC Plasma Router with pipe turntable is solid and easy to use controls and software. The machine is designed to cut air plasma sheet metal, mainly steel, aluminum and copper. Plasma cutting ensures high accuracy and repeatability of the cuts. Cut elements do not require further treatment and can be given directly to the next stage of production, that gives us a high degree of automation. Fine Cut technology allows to cut thin sheets (up to 4 mm) almost no need to deburr. When using Hypertherm plasma units 125A can be cutting from the edge of the sheet up to 57 mm thick. The machine has a set of predefined geometric shapes (wizards), so that by introducing the dimensions can easily generate cutting program. Furthermore, the machine has a built-in memory, allowing recording both generated projects and copying projects with portable memory for later use. The machine control panel allows you to change the cutting speed during operation. Plasma Router was based on steel, rigid structure with a gantry and the water table. CAD / CAM software is attached to the machine. The price includes delivery and training. Pipe turntable Turntable pipe allows you to cut pipes using plasma technology. Improves the construction of pipelines, construction of structures of buildings and halls using profiles with circular, the production of chimneys, culverts, etc. Plasma Router with pipe turntable consists of a set for plasma cutting, CNC turntable and software. Plasma Router pipe turntable allows to: - cutting the pipes at a right angle - trim angle (unilateral or bilateral) - cutting holes in pipes at different angles (axial and non axial)
