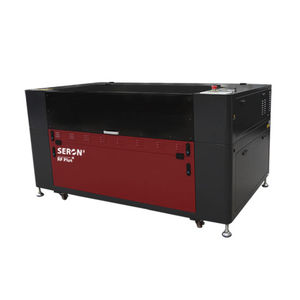

Engraving cutting machine SL 6040

CO2 laserfor metalfor rubber

SL 6040 CO2 laser routers are some of the more universal and versatile machines that are successfully used in many industries. Laser router Seron SL6040 with laser tube 50W (tube life up to 2000 operating hours *) is used for cutting and engraving materials such as Plexiglas, leather, rubber, wood, plywood, paper, cork, textiles, all kinds of engraving laminates, etc. The device also allows engraving and marking metals. The router is ideal for engraving small elements with such. Seals, which proves its high precision. It was designed from scratch by our engineers. The device is equipped with ergonomic casing with a reinforced structure. The standard is available vacuum table, helpful in stabilizing the finer elements, such as paper and the auto focus system called “auto-focus”. Our products are constantly being improved and that their work is accurate and reliable. Product features - A strong stable structure that allows high speed 1000 mm / s (up to 1500 mm/s – optional servo)** - The standard vacuum table - The Z axis raised and lowered electrically - The choice of one of two ventilated caps to the table: knife or honeycomb - Hardened, ground rails with linear carriages - Double ball bearing trolleys linear guides provide high accuracy - Shielded bearings and drives - Overpressure protection system lenses - The lens of two layers of silicon and focusing the laser beam, polished metal mirrors increase efficiency and allow you to gain a stronger final laser beam - Power cutting and engraving compressed air - Point of light (red point) that allows precise positioning of the head relative to the material
