Pneumatic fitting
screw-incutting ringelbow

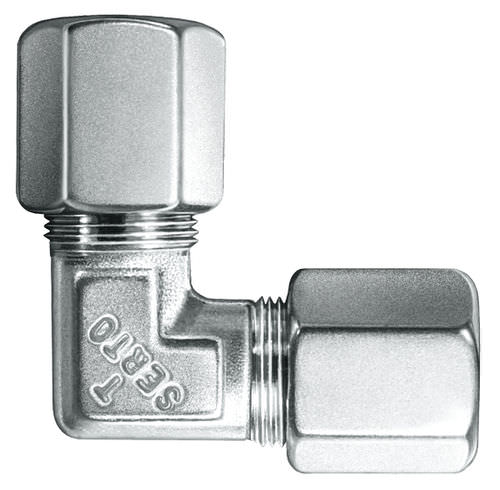

Pneumatic fitting - SERTO - screw-in / cutting ring / elbow
Pneumatic fitting - SERTO - screw-in / cutting ring / elbow
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
screw-in, cutting ring
Configuration
elbow
Material
stainless steel
Other characteristics
compact, corrosion-resistant, union
Diameter

Min.: 1.6 mm
(0.063 in)

Max.: 28 mm
(1.102 in)

Operating pressure

250 bar
(3,625.94 psi)

Description

Characteristics, specialities • easy and fast to install • resistant to corrosion • compact size • extensive range • many combination possibilities Material Stainless steel 1.4571 (≈ 316 Ti), alloy X6CrNiMoTi17-12-2, DIN EN 10088-3 Leak rate with helium 10-8 mbar • l/s (when professionally assembed; see installation instructions and tubes) Vacuum Up to 10-4 mbar, higher values are possible Tubes to use Tubes of plastic and stainless steel seamless precision tubes (to DIN EN 10216-5/EN ISO 1127) with clean smooth surface. Tolerance of outer diameter ± 0.1 mm. See also chapter on tubes and hoses. Further materials on request. Inspection certificate Inspection certificate 3.1 according to EN 10204 (with costs) Approvals DNV GL, DVGW, SVGW, ABS, additional information on request Adaptor stem, male thread British Standard Pipe (BSP) and metric fine thread DIN 3852; tapered form C; thread with sealing form B. NPT-thread according to ANSI B1.20.1. For sealing of the tapered male adaptor thread we recommend Loctite® 5061
