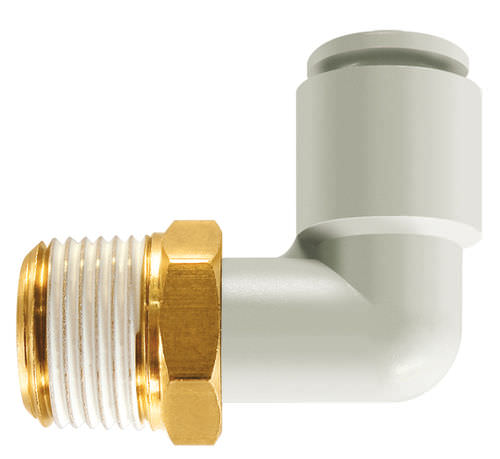

Pneumatic fitting FP3screw-inelbowplastic
Add to favorites
Compare this product
Characteristics
- Applications
- pneumatic
- Attachment
- screw-in
- Configuration
- elbow
- Material
- plastic
- Diameter
Max.: 12 mm
(0.472 in)Min.: 4 mm
(0.157 in)- Operating pressure
10 bar
(145.04 psi)
Description
Characteristics, speciality
- easy and fast to install
- advantageous price
- combinations possible with unions of brass, steel and stainless steel
- extensive range
Application
The main field of applications is pneumatic tubing. Should not be subjected to direct sunlight.
Material
Body of plastic PBT, threads of brass
Nominal pressure PN
10 bar at +23°C (safety factor 3)
Temperature range
-40°C to +80°C
Tubes to use
True-to-tolerance tubes and h
