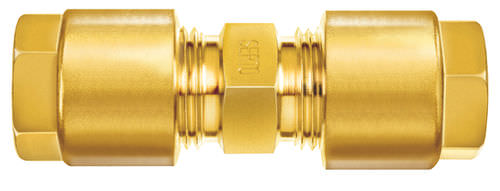

Hydraulic fitting G series

screw-incutting ringstraight

easy and fast to install - compact size - extensive range - many combination possibilities G = connection nut with British Standard Pipe (BSP) threads (M and G are not interchangeable) Material Brass CW 617N (CuZn40Pb2) , surface is pickled Leak rate with helium 10-8 mbar " l/s (when professionally assembed; see installation instructions and tubes) Vacuum up to 10-4mbar, higher values are possible Tubes to use Tubes of plastic and seamless copper tubes (esp. EN 12449/1057) with clean smooth surface. Outer diameter of 0.1 mm. Further materials on demand. Approvals SVGW, DVGW and VGW Adaptor stem, male thread British Standard Pipe (BSP) and metric fine thread DIN 3852. Tapered form C, parallel form B. Thread with sealing form E. BSP-thread according to ANSI/ASME B1.20.1-1983.
