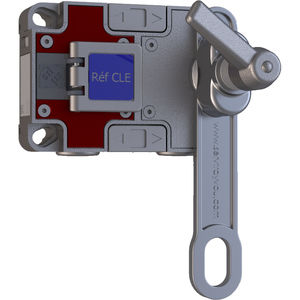

The S0L latch lock is a key access interlock is suitable for use on hinged and sliding doors. The interlock is manufactured in copper brushed aluminium, making it ideal for use in harsh or corrosive environments and heavy use. Typical industries using the S0L latch lock are
chemical, aggregate & concrete, iron & steel, paper & wood transformation, rail and power generation.
USAGE
The S0L Access Interlock can be used to allow safe access to potential hazardous and dangerous areas.
The S0L Access Interlock can be used on part body and full body access doors where the use of personal safety keys is not essential (to prevent
accidental lock in).
The S0L Access Interlock is not designed for security purposes, such as a safe or external access to a building.
INSTALLATION
A safety lock must be fitted with suitable fasteners.
Important:
To prevent unauthorized removal, the lock must be mounted using rivets or M5 stainless steel safety fixing screws
(washers, nuts and screws).
The installation must be carried out by a competent and qualified person who has read and understood these
instructions.
In case of vibrations, contact STI.
MAINTENANCE
Periodic visual checks should be carried out to check for deformation or corrosion/erosion/acid aggregating by the site
manager/safety officer. Clearing the marking/closing of the lock attachment.
Do not lubricate lock barrel with oil or grease, use Powder Graphite if necessary.
In case of defects being detected please contact your nearest Serv Trayvou Support Department for further actions.
Please see Contact section for contact details.
