MIG welding machine Servimag 400S

MAGautomaticfor metal

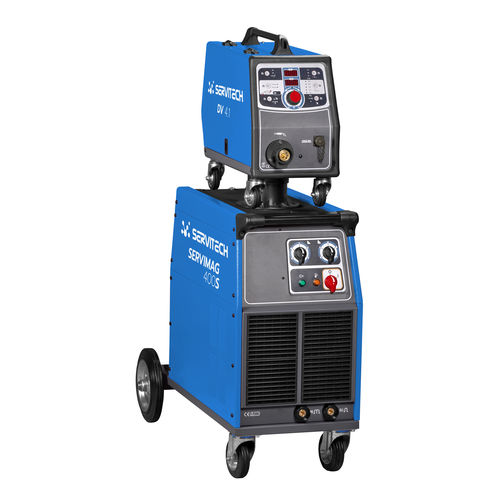

Servimag 400S Trailer-mounted, continuous wire welding machines equipped with microprocessor-controlled motor card for MIG/MAG and braze welding. Product Description Nom Servimag 400 S . DV 4.1 Input Voltage (3ph) 230/400V 50/60Hz Power 60% 19 KVA Uo 18 ÷ 45 V Amp. Min-max 30 ÷ 400 A Amp. 60974-1 40% 400 A 60% 326 A 100% 255 A Adjust. Pos. 24 Steel Ø 0,6 ÷ 1,6 mm Stainless Steel Ø 0,8 ÷ 1,2 mm Aluminium Ø 0,8 ÷ 1,6 mm Brazing Ø 0,8 ÷ 1,2 mm Insulation H Protec. Degree IP23S Dimens. (L*W*H) 1000x555x1340 mm Box (L*W*H) Generator 1120x530x845 mm Wire feeder 670x290x480 mm Weight net 159 Kg Code S110235413 Generator S110235405 Wire feeder S110235421 Intercon. cable S110235437 MIG Torch S110234669 Suitable for use in steel structural work and body shops for the welding of galvanised metal, stainless steel and aluminium plating. Particularly suited for the welding of aluminium using a spool-gun torch, which is recognized automatically by the generator. All the generators can be used in completely automatic (synergic) or manual mode by more experienced welders.
