MIG welding machine Servimag 250CMAGautomaticfor metal
Add to favorites
Compare this product
Characteristics
- Technique
- MIG, MAG
- Operational mode
- automatic
- Applications
- for metal, for steel
Description

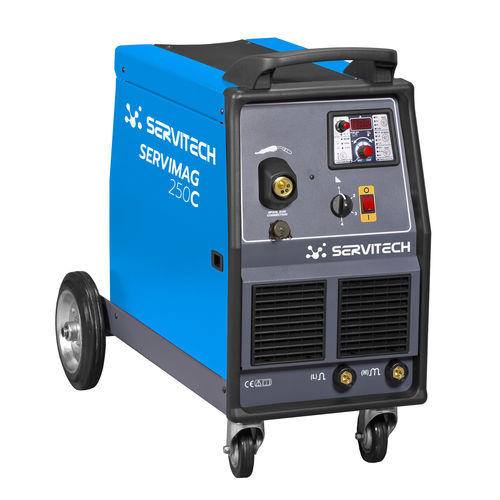

Servimag 250C
Trailer-mounted, continuous wire welding machines equipped with microprocessor-controlled motor card for MIG/MAG
and braze welding.
Product Description
Nom
Servimag 250 C
Input Voltage
(3ph) 230/400V 50/60Hz
Power 60%
5,9 KVA
Uo
17 ÷ 38 V
Amp. Min-max
30 ÷ 240 A
Amp. 60974-1
35% 230 A
60% 176 A
Adjust. Pos.
10
Steel
Ø 0,6 ÷ 1,0 mm
Stainless Steel
Ø 0,8 ÷ 1,0 mm
Aluminium
Ø 0,8 ÷ 1,2 mm
Brazing
Ø 0,8 ÷ 1,0 mm
Insulation
H
Protec. Degree
IP23S
Dimens. (L*W*H)
830x500x740 mm
Box (L*W*H)
900x390x615 mm
Weight net
70 Kg
Code
S110235410
Generator
S110235402
Earth Clamp
S110235356
MIG torch
S110235435
Gas regulator
S110235436
Kit Code
S110235410
Suitable for use in steel structural work and body shops for the welding of galvanised metal, stainless steel and aluminium plating. Particularly suited for the welding of aluminium using a spool-gun torch, which is recognized automatically by the generator.
All the generators can be used in completely automatic (synergic) or manual mode by more experienced welders.
