MMA welder Primarc 190single-phaseACportable
Add to favorites
Compare this product
Characteristics
- Technique
- MMA
- Power supply
- single-phase
- Output current
- AC
- Other characteristics
- portable
- Intensity
Max.: 100 A
Min.: 35 A
Description

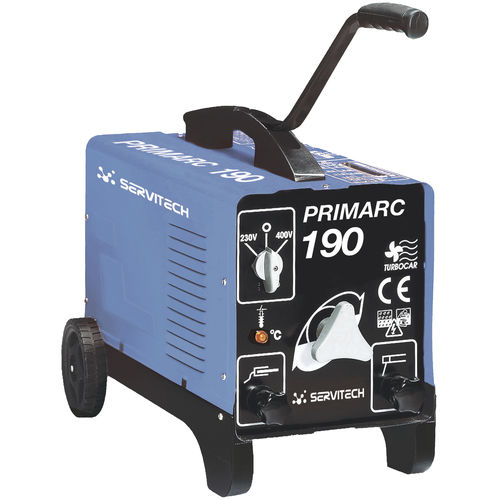

Primarc 190
Single phase AC portable welding units. Stepless control of the welding current. Thermostatic overload protection.
Product Description
Primarc 190
Input Voltage
(1ph) 230/400V 50/60Hz
Power 60%
4,4 KVA
Uo
48 V
Amp. Min-Max
35 ÷ 190 A± 10%
∅E
1,6 ÷ 4 mm
Insulation
H
Protect Degree
IP21S
Protect Degree
670x340x585 mm
Box (LxWxH)
485x285x325 mm
Weight box/net
24 / 22,9 Kg
Code
S110234295
