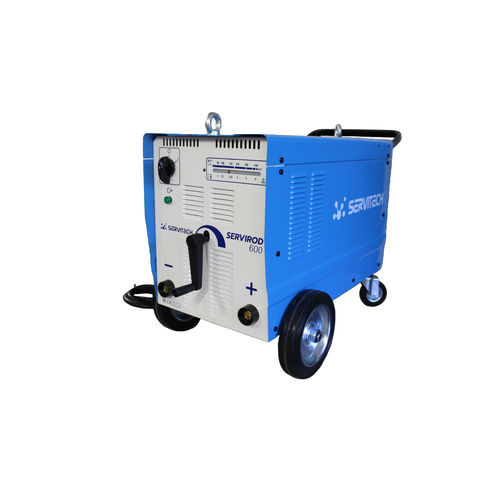

MMA welder Servirod 600three-phaseDCwith 4-roll wire feeder
Add to favorites
Compare this product
Characteristics
- Technique
- MMA
- Power supply
- three-phase
- Output current
- DC
- Other characteristics
- with 4-roll wire feeder, with cooling
- Intensity
Max.: 550 A
Min.: 60 A
Description
Servirod 600
These-phase DC welding units, on wheels, with cooling fan, suitable for welding all types of electrodes for heavy duty work. Stepless control of the welding current by magnetic shunt.
Product Description
Nom
Servirod 600
Input Voltage
(3ph) 230/400V 50/60Hz
Power 60%
35 KVA
Uo
71 ÷ 78 V
Amp. Min-Max
60 ÷ 550
Amp. 60974-1
35% 550 A
60% 420 A
100% 350 A
∅E
2 ÷ 6 mm
Insulation
H
Protect Degree
IP23S
Dimens. (LxWwH)
1120×620×740
Box (LxWxH)
1150×520×720
Weight box/net
213 / 200. 5Kg
Code
S110234976
