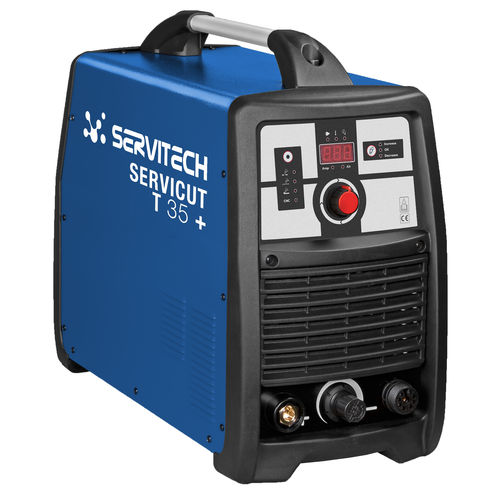

Plasma welder Servicut T35+

portable

Servicut T35+ Product Description NomServicut T 35 + Input Voltage (3ph) 220V 50/60Hz (3ph) 400V 50/60Hz Power 50% 11,5 KVA 11,5 KVA Max input current 31 A 18 A Uo 300 V 290 V Range 20 ÷ 80 A 20 ÷ 85 A Cutting current 60% 85 A 60% 85 A Insulation H H Protec. Degree IP22S IP22S Dimens. (L*W*H) 545x255x415 mm 545x255x415 mm Box (L*W*H) 665x305x460 mm 665x305x460 mm Weight box/net 32,7 / 30,7 Kg 32,7 / 30,7 Kg Code ON DEMAND S110235393 Plasma Torch (Clean Cutting) PH125 6 pin Code S110234789 105 A PT100 6 pin Code S110234799 110 A Starter Kit S110235326 – 25 cm/min 30 mm 30 mm Max 35 mm 35 mm Severance 40 mm 40 mm Pierce 19 mm 19 mm required air capacity 330 l/min @ 5,5 bar 330 l/min @ 4,5 bar
