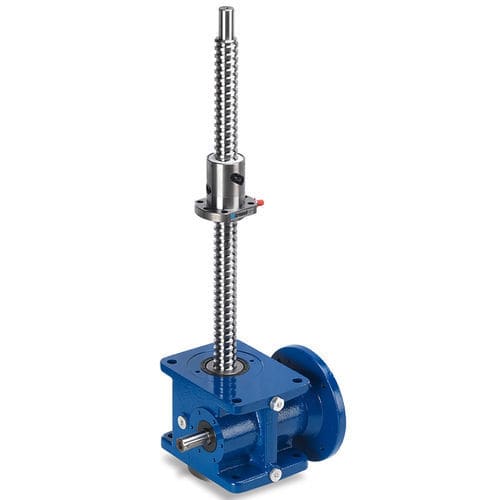

Ball screw jack MA BS Mod.B Series

worm gearnutflange

Ball screw jacks recommended for continuous operation, duty cycle up to 100% Long life synthetic oil lubricated worm gear High precision worm gearbox, ZI involute profile, reduced angular backlash Gearbox ratio from 1:4 to 1:32 Gearbox housing shape for a better heat dissipation Input speed up to 3.000 rpm Ball screw drive, travelling nut (Model B) MA BS Mod.B Series ball screw jacks with travelling nut: 8 sizes standard available Ball screw from Ø 16 mm to Ø 120 mm Load capacity from 5 kN to 350 kN Available accessories (*): Incremental or absolute encoder for positioning control Prepared for IEC standard motors, AC or DC motors, and brushless servomotors (special motor flange adapter available upon request) Protective bellows Worm wheel rotation detector Safety nut Trunnion mount More option upon request (*): Lubricants for high or low ambient temperature Lubricants suitable for food industry (*) Always check with our technical support the feasibility of the required option and accessories
