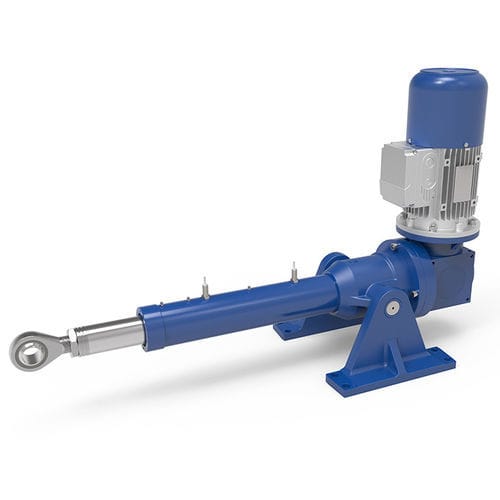

Linear actuator ILA Series

electricball screwwith servo-motor

In-line modular design linear actuators for a great flexibility in mounting. The shaft and the flange allow the easy coupling of a gearmotor with in-line or right angle mounting. Housing mounting with pins. Lubrication with synthetic grease (gearbox long life lubricated, screw drive regreasable). ILA.A Series, acme screw drive: 6 standard sizes available Acme screw from Ø 22 mm to Ø 80 mm Load capacity from 15 kN to 250 kN Standard stroke length up to 1.500 mm, special stroke length also available upon request Performances with Duty Cycle Fi = 30 % over 10 min at ambient temperature 25 °C ILA.B Series, ball screw drive: 6 standard sizes available Ball screw from Ø 25 mm to Ø 80 mm Load capacity from 15 kN to 250 kN Standard stroke length up to 1.500 mm, special stroke length also available upon request Performances with Duty Cycle Fi = 1000 % over 10 min at ambient temperature 25 °C Available accessories (*): Stroke length limit device (inductive proximity) Incremental or absolute encoder for positioning control Prepared for IEC standard AC motors and brushless servomotors Anti-turn device Safety nut Protective bellows More option upon request (*): Push rod in stainless steel AISI 304 Lubricants for high or low ambient temperature (*) Always check with our technical support the feasibility of the required option and accessories
