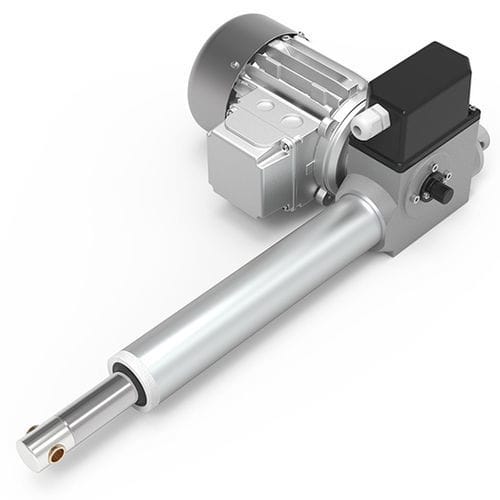

Linear actuator CLA Series

electricscrewstainless steel

Linearmech electromechanical linear actuators are easy-to-use and reliable products. Great and convenient alternative to the use of pneumatic cylinders recommended in case of medium to low speed application, intermittent duty cycle operation and self-locking requirement when load is applied, both pull or push load. LINEARMECH CLA and CLB Series linear actuators are right angle design, AC or DC motor always included. Aluminum alloy housing with high resistance. Input drive with worm gear. CLA Series acme screw drive linear actuators: 6 standard sizes available Acme screw from Ø 13,5 mm to Ø 18 mm Linear speed up to 100 mm/s Load capacity push-pull up to 10.000 N Electric motors available: AC 3-phase or 1-phase motor, DC motors (12V, 24V) Long life lubricated, maintenance free Available accessories (*): Electric limit switches, cam operated, protected under a sealed cover (IP65), Stainless steel push rod Rear bracket Safety clutch Brake-motor (*) Always check with our technical support the feasibility of the required option and accessories
