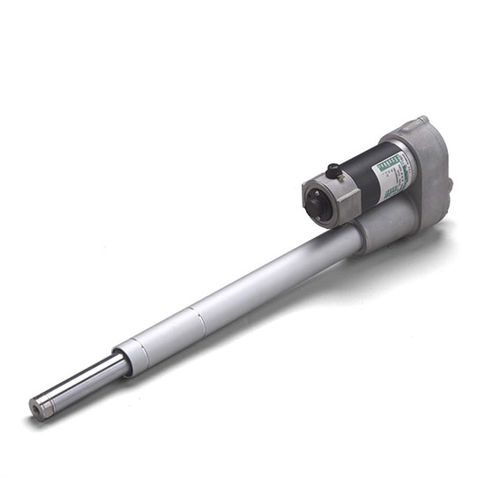

Linear actuator UAL 0

electricball screwworm gear

Linearmech electromechanical linear actuators are easy-to-use and reliable products. Great and convenient alternative to the use of pneumatic cylinders recommended in case of medium to low speed application, intermittent duty cycle operation and self-locking requirement when load is applied, both pull or push load. LINEARMECH UAL and UBA Series linear actuators are parallel design, DC motor always included. Aluminium alloy housing with high resistance. Input drive with high precision timing belt transmissions. UAL Series acme screw drive linear actuators: Acme screw Ø 14 mm Linear speed up to 600 mm/s Load capacity push-pull up to 500 N Electric motors available: DC motors (12V, 24V) Long life lubricated, maintenance free Available accessories (*): External magnetic reed switches, easy to set-up Incremental encoder for position control Stainless steel push rod Rear bracket Brake-motor (*) Always check with our technical support the feasibility of the required option and accessories
