Crosscut cutting machine LC 100 knifefor metalfor plastics
Add to favorites
Compare this product
Characteristics
- Technology
- knife
- Material
- for metal, for plastics
- Product handled
- tube, profile, cable
- Control type
- CNC
- Other characteristics
- universal, with roller feeder, crosscut
- Tube diameter
8 mm
(0 in)- Cutting speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0 m/s
(0 ft/s)- Overall length
194 mm
(8 in)- Overall width
295 mm
(12 in)- Height
227 mm
(9 in)- Weight
11 kg
(24.25 lb)
Description

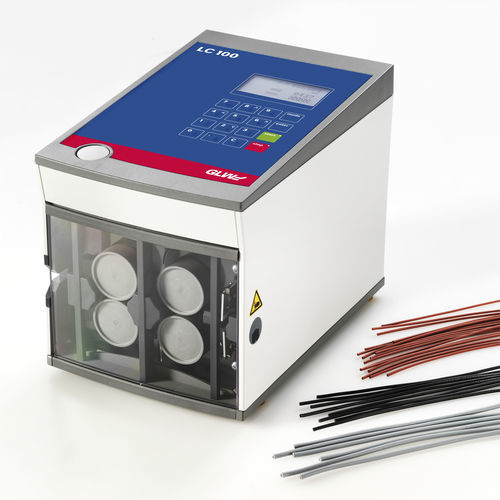

The LC 100 Series, manufactured by SES-STERLING, is a series of elmuniversal cutting machines generally designed for cables, tubes, films as well as profiles. This cutting machine is specifically engineered for cutting rigid cables measuring up to 2.5mm², flexible cables measuring up to 10mm² as well as tubes & cables measuring 8mm². In addition, it is also applicable for both short runs and large production runs due to its simple operation and robust design. A clear sensitive keyboard is equipped in this machine in order to enable a fast programming of the length and the desired quantity of cut.
Also, two driven transport rollers and separately-running measurement rollers ensure precise cutting length without having to crush the material being processed.
Only sold in France.
